Car Gates / Doors

Peelle Car Doors/Gates

Peelle car doors/gates are manufactured with the highest quality materials and components. Car doors/gates come in many different sizes, styles and configurations in order to meet your customized needs.

Standard Car Door/Gate Features

  • Smooth manual or power operation
  • Light Curtain for safety (power operation only)
  • Finger resistant 3/8 in. (10mm) wire mesh construction for both single and multi-section style gates (Car Gate)
  • 18 gauge (1.2mm) sheet steel with vision panel (Car Door)
  • Scratch resistant baked powder coat finish
  • NEMA 1 (IP 10/54/56)
  • Designed for high reliability and low maintenance Optional Car Door/Gate Features
  • Stainless steel construction
  • NEMA 4X (IP 56), NEMA 7/9
  • Steel kick plate
  • Wood or steel bumpers

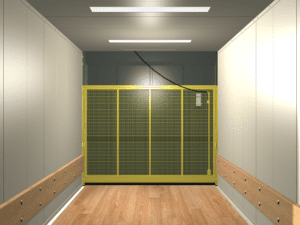

Single Section Car Door/Gates

single-section-car-gate

Single section car doors/gates are used when there is ample overhead height in the hoistway. Single section car doors/gates consist of a single counterweighted panel and can be either manually or power operated.

Required overhead height, measured from the top landing sill to the nearest overhead obstruction, for a standard 6 ft. (1830mm) high car door/gate is equal to the landing door opening height plus 6 ft 1 in. (1855 mm). Single section car doors/gates require a 4.5 in. (114mm) car setback.

When there is insufficient overhead height, use a two-section car door/gate.

Single Section Full Height Car Door

Full height car doors are suited for freight elevators authorized to carry passengers. Single section full height car doors are used when there is ample overhead height in the hoistway. Single section car doors consist of a single counterweighted panel and can be either manually or power operated.

Required overhead height, measured from the top landing sill to the nearest overhead obstruction, for single section full height car doors equals two times the landing door opening height plus 14 in. (356 mm). Single section car doors require a 6.5 in (114mm) car setback.

When there is insufficient overhead height, use a two-section full height car door.

Two Section Car Door/Gates

two-section-car-gate

Two section car doors/gates are used when overhead height in the hoistway is limited. A two-section car door/gate consists of two counterweighted panels of different heights and can be either manually or power operated.

Required overhead height, measured from the top landing sill to the nearest overhead obstruction, for a standard 6 ft (1839mm) high car door/gate is equal 1.5 times the landing door opening height plus 6 in. (150mm). Two-section 6 ft. (1839 mm) high car doors/gates require a 6.5 in (165mm) car setback.

When there is insufficient overhead for a two-section car door/gate, use a differential car door/gate.



Two Section Full Height Car Door

two-section-slide-up-hoist

Full height car doors are suited for freight elevators authorized to carry passengers. Two-section full height car doors are used when overhead height in the hoistway is limited. A two-section full height car door consists of two counterweighted panels of equal heights and can be either manually or power operated.

Required overhead height, measured from the top landing sill to the nearest overhead obstruction, for full height two-section car doors equals 1.5 times the landing door opening height plus 13 in. (406mm). Two-section full height car doors require a 7.5 in. (190mm) car setback.

When there is insufficient overhead for a two-section car door, use a three-section full height car door.

21-224x300

Differential Car Door/Gate

two-section-car-gate

Differential car doors/gates are used when overhead is severely limited. Differential car doors/gates are 6 ft. (1830mm) high and consist of two equal height counteweighted panels and can be either manually or power operated.

Required overhead height, measured from the top landing sill to the nearest overhead obstruction, for a 6 ft. (1839mm) high differential door/gate is equal to the landing door opening height plus 3 ft 3 in. (1000mm). Differential car doors/gates 6 ft. (1839 mm) high require a 7.5 in. (191mm) car setback.

Three Section Full Height Car Door

three-section-slide-up

Full height car doors are suited for freight elevators authorized to carry passengers. Three section full height car doors are used when overhead height in the hoistway is extremely limited. A three-section full height car door consists of three counterweighted panels of equal heights and can be either manually or power operated.

Required overhead height, measured from the top landing sill to the nearest overhead obstruction, for full height three-section car doors equals 1.33 times the landing door opening height plus 13 in. (406mm). Three-section full height car doors require a 9 in. (229mm) car setback.

Please contact Peelle should your project specifications not meet the Peelle dimensional requirements. Peelle offers door solutions beyond the standards listed above to resolve dimensional and environmental challenges.
