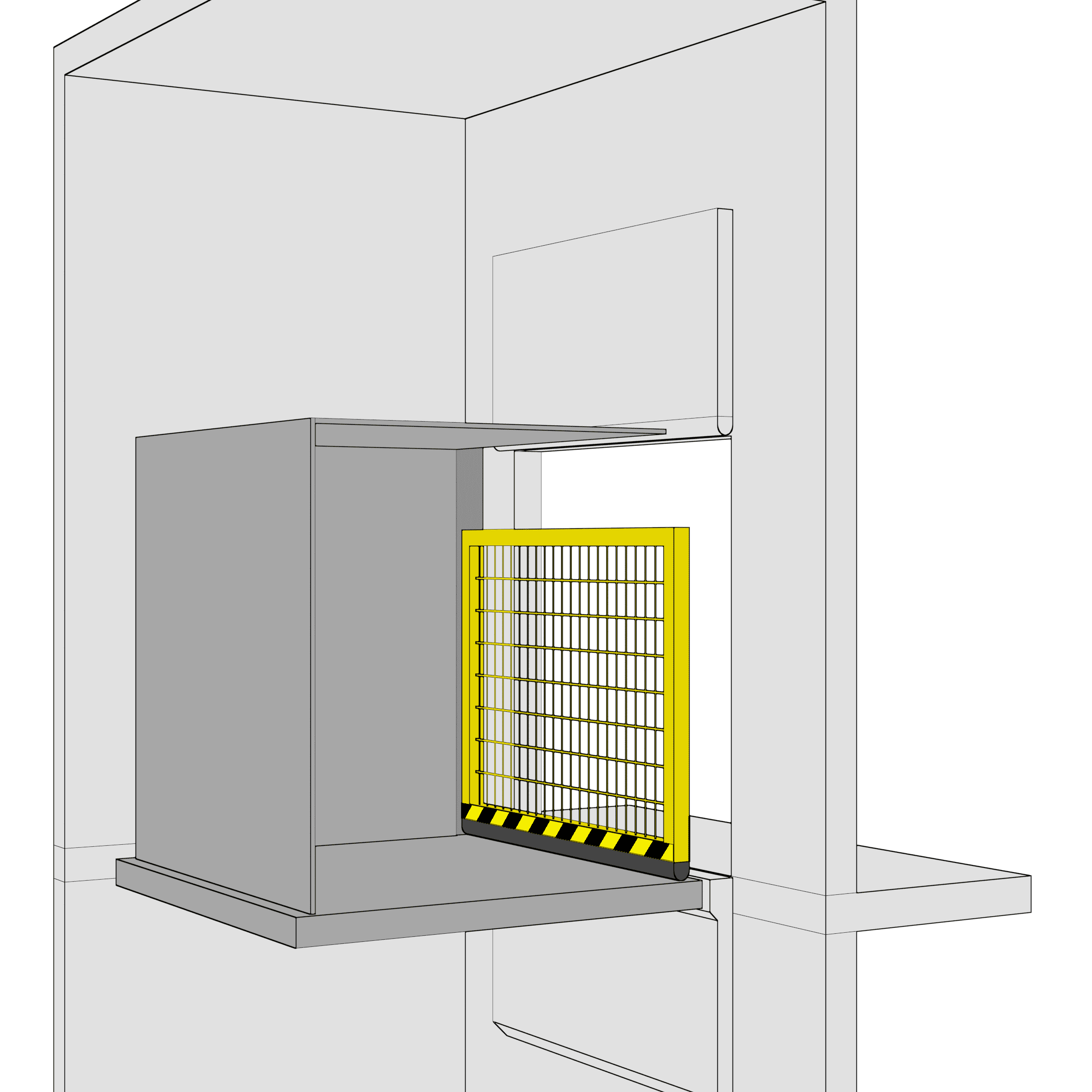

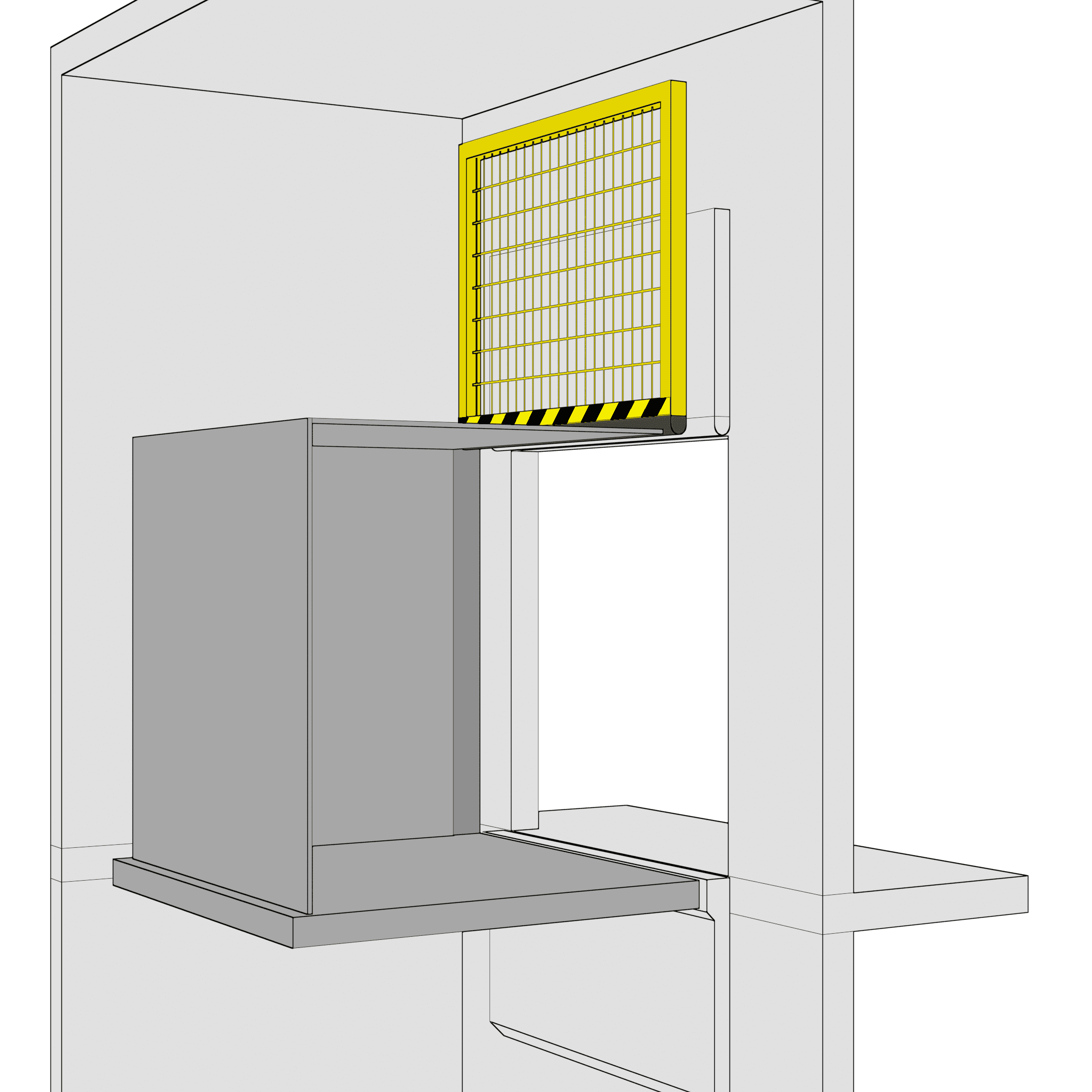

Single section car gates, also known as North American style gates, consist of a 6-foot high single section wire mesh panel, with chains and hangers visible from within the car.
These gates are used when there is ample overhead height at the top floor, and the elevator is not rated to carry passengers.
MIN. RAIL HEIGHT: OPENING HT + 1829 mm [72 in]
CAR ENCLOSURE SETBACK: 114 mm [4 1/2 in]
